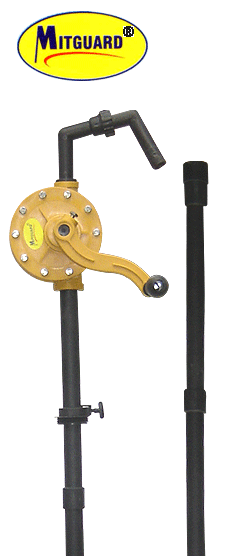

PLASTIC ROTARY
CHEMICALS PUMP
{PRP – 03} |
|
|
Product Brief
Designed for use with media with
which a regular cast iron or
steel barrel pump cannot be used
Pump body is made from glass
filled polypropylene with Ryton
veins. All Seals are from viton
rubber & all pump hardware is
Stainless Steel Stainer fitted
at the suction tube inlet stops
contaminants from entering the
pump Complete with threaded
polypropylene suction tube & a
choice of two 2" bung adaptor
for use on both plastic & metal
drums of capacity 15 gallons (50
litre) - 55 gallons (205 litre)
WETTED COMPONENTS
Polypropylene, Ryton, Viton &
Stainless Steel
RECOMMENDED USE
For dispensing water based
media, antifreeze, acids,
chemicals etc; in addition to
use with all petroleum based
products.
DO NOT USE
With Acetone, Lacquer, Mineral
Oils, Solvents, Turpentine etc.
|
|
ESP:
Bomba retativa - quimica
FR: Pompe à rotation - chimique
DE: Chemikalien Kurbelpumpen
|
|
 |
|
|
PLASTIC ROTARY OIL
PUMP
{ERP – 03} |
|
|
|
Product Brief
Low cost rotary pump for
dispensing oil based
fluids Pump body & veins
are made from
polypropylene All seals
are NBR & all pump
hardware is steel
Strainer fitted at the
suction tube inlet stops
contaminants from
entering the pump
Complete with threaded
polypropylene suction
tube & 2" bung adaptor
for use on drums of
capacity 15 gallons (50
litre) -55 gallons (205
litre)
WETTED COMPONENTS
Polypropylene, NBR &
Steel
RECOMMENDED USE
Oil Based Media
DO NOT USE
With water based media
Antifreeze, Acids,
Chemicals, Solvents,
Lacquer, Gasoline etc.
|
|
ESP:
Bomba rotativa - polypropylene
FR: Pompe à rotation -
polypropylene
DE: Polypropylen Pumpen
|
|
|
|
|
|

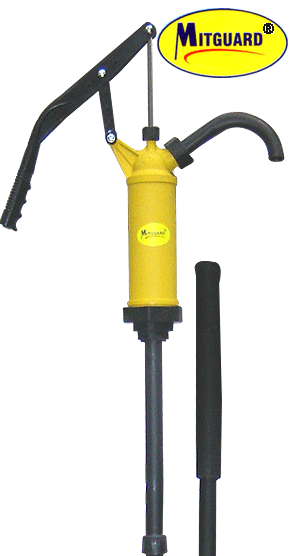

PLASTIC LEVER ACTION
DRUM PUMP |
|
|
KEY
PRODUCT SPECS
Oz. Per Crank
ADDITIONAL PRODUCT SPECIFICATIONS
Polyproplene Material
Use With: Water, Alcohol,
Gasoline, Diesel, Kerosene, Lubricant,
Water Based Chemicals and Acid/Alkali
Solutions
Use With: 5, 15, 30 and 55 Gallon
Drums
24 GPM
Self-Priming
Pump Cylinder O.D.: 1 1/4in.
Pump Cylinder I.D.: 7/8in.
Spout End O.D.: 7/8in.
Spout End I.D.: 5/8in.
|
|
|
